Writing Bakeout Scripts

Here’s how to write a bakeoutscript

  1. Launch BakeoutManager (Bo on the dock)

  2. Open the script editor (Edit scripts button). An empty script is opened as a default

  3. Use Open to open an existing script or just start writing one from scratch

  4. Write your script. see below

  5. You may check the syntax of your script at any point by hitting Test. A dialog will pop up saying if there was a problem and what it was or if the script passed with no errors. The scripts syntax is also automatically checked before saving.

  6. Use Save and Save As in the normal manner. script files should end with .py . if the file ending is omitted a .py is appended automatically

  7. Close the script editor

Here is an example script

#===========================================================================
#this is a comment in the script. use it at your leisure
#the following line def main(): is required and the entry point for the script
def main():
    #this is the body of the main function
    #it should be one tab in
    ramp(150,100,start=45)  # comments can go on the same line as functions
    setpoint(150,4)
    ramp(0,-150)
#end of script
#===========================================================================

Lets break it down line by line.

  • A comment can be added anywhere using the # character

  • def main(): defines a required function called “main” that will be executed when the script is run. The main function is necessary and is added to an empty script by default.

  • The function ramp(150,100,start=45) sets the controller to 45 C, then increases the temperature setting to 150 C at a rate of 100 C/hr

  • The function setpoint(150,4) sets the controller to a temperature of 150 C and holds it for 4 hours

  • ramp(0,-100) decreases the temperature setting from the current temperature to 0 C at a rate of -100 C/hr.

  • Notice that the start parameter of the ramp() function is optional. If omitted the controller’s current temperature is used as the starting point

To activate a script for a given controller use the drop down menu located above the Duration box

To execute the bakeout hit Execute. Stop to Stop.

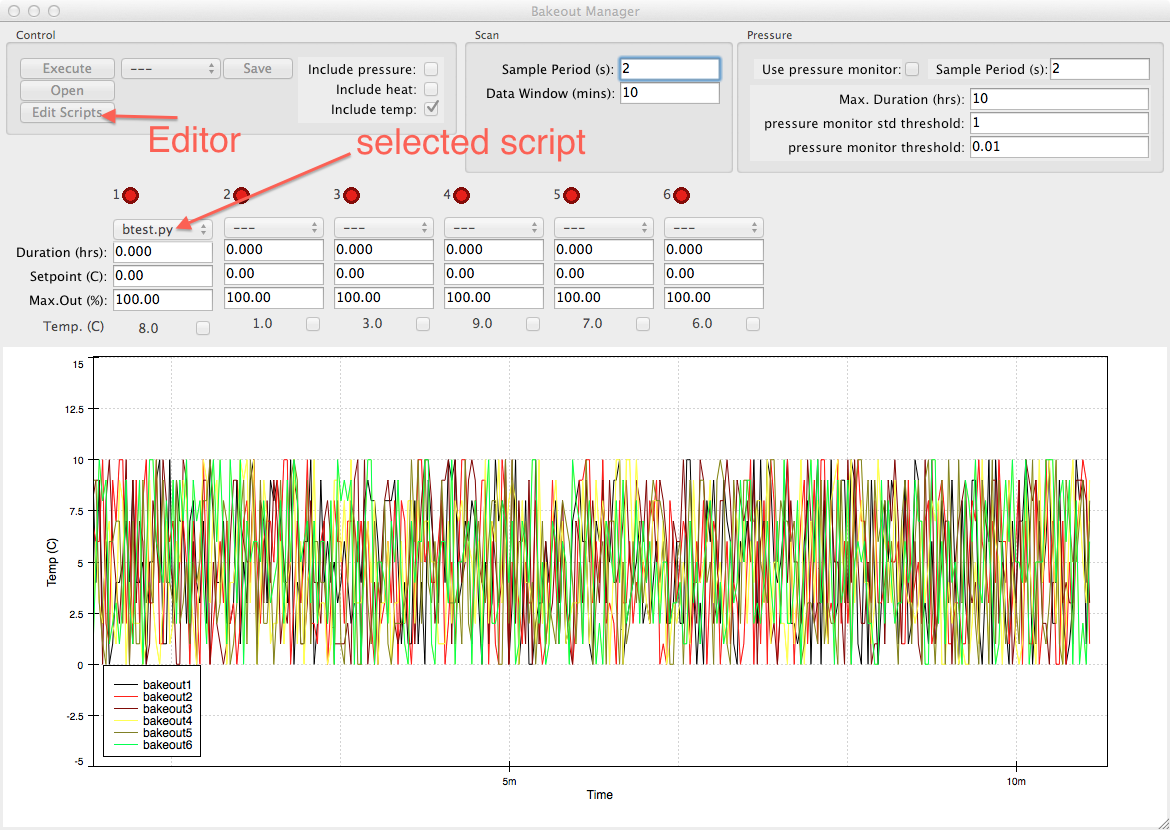

../../../_images/bakeout_manager.png ../../../_images/bakeout_editor.png

bakeout functions

ramp(setpt, rate[, start=None, period=60])

ramp controller’s setpoint from start to setpt at a rate of rate C\hr. if start=None then the controller’s current temperature is used. period defines seconds between setpoint updates. e.g. period=30 sets the controllers setpoint every 30 seconds

setpoint(temperature, duration)

set controller’s setpoint to temperature for duration hours
